Space M2 Bitcoin Mining Container (PC480) Liquid-Cooled Hydro Container
$70,000
The Space M2 (PC480) liquid-cooled bitcoin mining container delivers professional-grade performance with 480 miner slots and 2,833 kW total system capacity. Engineered in Taiwan with premium components from Schneider Electric, ABB, and Siemens, this 40-foot container supports top ASIC water-cooled ASIC miners brands with unmanned intelligent operation.
Featuring dual CDU pump stations and 2,640 kW cooling capacity through dual dry coolers, the Space M2 ensures optimal thermal management with 304 stainless steel construction throughout.
Compact Liquid-Cooled Solution for Edge Deployments
Professional 480-Slot Bitcoin Mining Container Hydro Mining Solution with Unmanned Intelligent Control.
- ✓ Total Cooling Capacity: 2,833 kW (2,640 kW server power + 193 kW cooling system)
- ✓ 480 ASIC miner slots (All water-cooled servers compatible)
- ✓ Weight: Approximately 9.5 tons (miners only)
- ✓ Dual CDU (Coolant Distribution Units)
- ✓ 2 × Dry Coolers (1,320 kW each = 2,640 kW total)
- ✓ Unmanned LCS intelligent control system
- ✓ Multi-level protection with automatic emergency response
- ✓ Real-time mobile monitoring and alerts
- ✓ 304 stainless steel corrosion-resistant construction
- ✓ Siemens PLC industrial control system
Detailed Technical Specifications.
Container Construction:
| Specification | Details |
|---|---|
| Type | 40ft High-Strength Metal Container |
| Dimensions (L×W×H) | 12,192mm × 2,438mm × 2,896mm (40ft × 8ft × 9.5ft) |
| Weight (Empty) | ~10,000 kg (22,046 lbs) |
| Weight (with Miners) | ~19,500 kg (9.5 tons miners + container weight) |
| Frame Material | High-strength metal with excellent rigidity and stability |
| Coating | Three-step painting with zinc-rich corrosion-resistant primer |
| Insulation | Thermally insulated container body |
| Doors | Front and side doors with louvers, dust filter screens, and fans |
| Ventilation | Effective ventilation with rain protection and dust resistance |
Mining Capacity:
| Specification | Details |
|---|---|
| Maximum Miners | 480 units (Bitmain water-cooled servers) |
| Compatible Models | Bitmain S19 Hydro, S21 Hydro, future water-cooled models |
| Rack System | Unibody extrusion stamping or square tube welding |
| Rack Features | Mesh shelves for enhanced airflow |
| Water Manifolds | 304 stainless steel with quick-connect couplings |
| Server Installation | Easy quick-connect installation, separated from high-voltage |
Cooling Infrastructure (Dual Dry Coolers)
| Specification | Details |
|---|---|
| Number of Units | 2 dry coolers |
| Heat Dissipation per Unit | 1,320 kW |
| Total Cooling Capacity | 2,640 kW (2 × 1,320 kW) |
| Coil Material | 304 stainless steel (corrosion resistant) |
| Fans per Unit | 16 fans (32 total) |
| Dimensions per Unit | 10,700mm × 2,240mm × 2,510mm |
| Cooling Method | Dry cooler with cellulose pads |
| Connection | Flexible stainless steel piping |
| Integration | LCS system linkage for monitoring and alarms |
Multi-Level Protection & Safety
| Protection Type | Response |
|---|---|
| Coolant Leak Detection | Automatic detection and response, pressure release |
| High Temperature | Automatic shutdown/throttling on overheat |
| Motor Failure | Automatic failover and alert notification |
| Voltage Anomaly | Monitors and protects against power issues |
| Electrical Leakage | Ground fault detection and isolation |
| Pipeline Pressure | Constant pressure with auto-replenishment/relief |
| Secondary Damage Prevention | Automatic pressure release on leak detection |
Electrical Specifications :
| Specification | Details |
|---|---|
| Electrical Standard | 380V/50Hz three-phase |
| Server Power Consumption | ~2,640 kW maximum |
| Cooling System Power | ≤193 kW |
| Total System Power | 2,833 kW maximum |
| Power Distribution Cabinets | 4 units included |
| Circuit Breakers | 8 × reclosing circuit breakers (2 per cabinet) |
| Protection | Leakage current and overload protection |
| Power Metering | Real-time monitoring per rack group with cloud upload |
| Components | Schneider Electric and ABB protection devices |
Mining Capacity:
| Component | Specification |
|---|---|
| Number of CDUs | 2 Coolant Distribution Units |
| Circulating Pump | Industrial-grade vertical pumps (Model: CDL-150) |
| Pump Features | Long-term operation, leak-proof, burnout-resistant |
| Expansion Tank | Maintains stable pressure, prevents pipeline damage |
| Replenishment Pump | 200W, 1-2 m³/h capacity, 220V, 25mm diameter |
| Constant Pressure Pump | Ensures stable system pressure during operation |
| Flow Sensor | Stainless steel turbine flow meter (DN125 flange) |
| Temperature Sensors | Monitor inlet and outlet water temperature |
| Pressure Sensors | Monitor inlet and outlet water pressure |
| Piping Material | 304 stainless steel with corrosion resistance |
| Manifolds | 304 stainless steel with quick-connect fittings |
| Safety Design | Constant pressure with automatic replenishment/relief |
| Leak Protection | Automatic pressure release prevents secondary damage |
LCS Intelligent Control System
| Component | Description |
|---|---|
| System Type | Unmanned LCS intelligent control platform |
| Platform Access | Mobile app and PC/web interface |
| Core Controller | Siemens PLC (Programmable Logic Controller) |
| Extension Modules | Siemens expansion modules for I/O |
| Frequency Converters | Variable speed drives for pump control |
| Local Interface | Touchscreen HMI for on-site management |
| Remote Connectivity | Gateway for internet/VPN access |
| Protection | Phase sequence protector, surge protector |
| Features | Real-time monitoring, alerting, logging, auto-response |
| Mobile Alerts | Push notifications to mobile devices instantly |
-

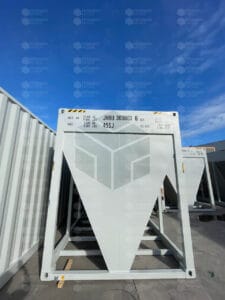

- Space M2 Bitcoin Mining Container PC480
-
- Space M2 Bitcoin Mining Container PC480
-

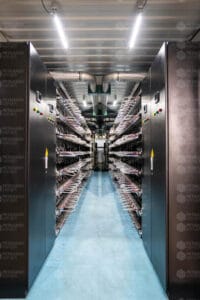

- Space M2 PC480
-

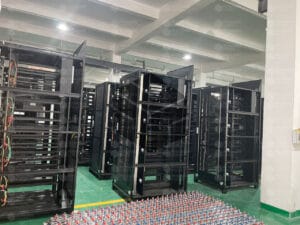

- Space M2 40ft Liquid-Cooled
-

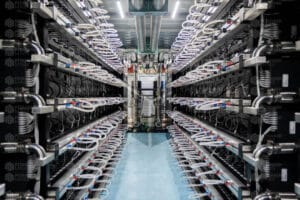

- 40ft Liquid-Cooled Bitcoin Mining Container Space M2
-

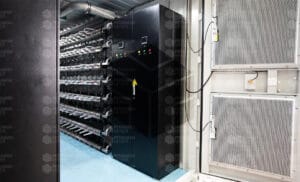

- 40ft Liquid Cooled Mining Container M2 Space
-

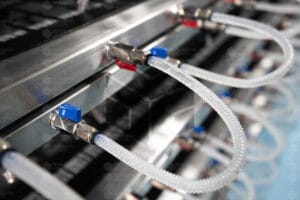

- 40ft Hydro Mining Container
-

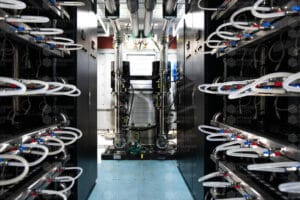

- 40ft Mining Container Liquid Cooled Inside Hydro
-

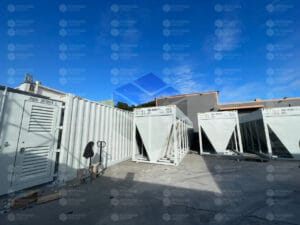

- Space M2 PC 480 Container
What's Included in Base Price
Container & Structure
- ✓ 40ft high-strength metal container with thermal insulation
- ✓ Three-step painting with zinc-rich corrosion-resistant primer
- ✓ Front and side doors with louvers and dust filters
- ✓ Integrated ventilation fans
- ✓ Rain protection and dust resistance
- ✓ Dimensions: 12,192 × 2,438 × 2,896 mm
Server Racks & Water Manifolds
- ✓ 480-slot server rack system with mesh shelves
- ✓ 304 stainless steel water manifolds (front-mounted)
- ✓ 304 stainless steel ball valves
- ✓ Quick-connect couplings for easy installation
- ✓ Separation of water manifolds from high-voltage components
- ✓ Original manufacturer aviation plugs
- ✓ Standardized power cables

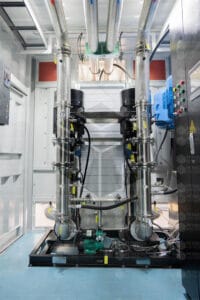

Dual CDU Pump Stations (2 Units)
- ✓ 2 × Industrial-grade vertical circulating pumps (CDL-150)
- ✓ 2 × Expansion tanks for pressure stability
- ✓ 2 × Liquid replenishment pumps (200W, 1-2 m³/h)
- ✓ 2 × Constant pressure pumps
- ✓ Flow sensors (DN125 stainless steel turbine meters)
- ✓ Temperature sensors (inlet/outlet monitoring)
- ✓ Pressure sensors (inlet/outlet monitoring)
- ✓ 304 stainless steel piping and manifolds
- ✓ 304 quick-connect fittings
- ✓ Flexible stainless steel connections
- ✓ Constant pressure design with auto-replenishment
LCS Intelligent Control System
- ✓ Complete hardware and software system
- ✓ Siemens PLC with extension modules
- ✓ Frequency converters for pump control
- ✓ Local touchscreen HMI for on-site management
- ✓ Gateway for remote connectivity
- ✓ Auxiliary power supplies
- ✓ Phase sequence protector
- ✓ Surge protector
- ✓ Contactors
- ✓ Proprietary LCS mobile and PC platform
- ✓ Real-time monitoring, alerting, and logging
- ✓ Automatic incident response system
- ✓ Mobile push notifications
Power Distribution System
- ✓ 4 × Power distribution cabinets
- ✓ 8 × Reclosing circuit breakers (2 per cabinet)
- ✓ Leakage current protection
- ✓ Overload protection
- ✓ Real-time power metering per rack group
- ✓ Data upload to server/cloud
- ✓ Schneider Electric and ABB components
Cooling Infrastructure
- ✓ 2 × Dry cooler units (1,320 kW each)
- ✓ 304 stainless steel coils
- ✓ 32 × Fans total (16 per unit)
- ✓ Cellulose cooling pads
- ✓ LCS system integration
- ✓ Monitoring and alarm capabilities
- ✓ Flexible stainless steel piping connections
- ✓ Total cooling capacity: 2,640 kW
Networking
- ✓ 100M 24-port industrial switches
- ✓ Cat5e network cables
- ✓ Complete network infrastructure
Safety & Protection
- ✓ Multi-level protection system
- ✓ Coolant leak detection and response
- ✓ High temperature protection
- ✓ Motor failure detection
- ✓ Voltage anomaly monitoring
- ✓ Electrical leakage protection
- ✓ Automatic pressure release on leak
- ✓ Emergency shutdown functions
Quality Assurance
- ✓ High-voltage insulation testing
- ✓ Ground continuity verification
- ✓ Hydraulic pressure testing
- ✓ System integration testing
- ✓ Complete documentation package
